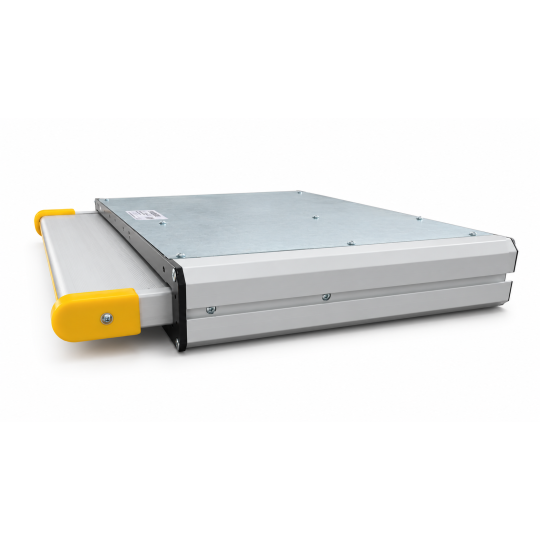

Modifero Electric Sliding Step for MAN TGE – 40 to 100 cm
"Comfortable vehicle access for modern and professional MAN TGE conversions."
The MAN TGE combines the versatility of a modern commercial van with a platform particularly well suited to professional and high-quality vehicle conversions. From campervans and motorhomes to shuttle and VIP vehicles, mobile workspaces, and specialist commercial vehicles, the TGE is used in applications where convenient and reliable vehicle access can make an important difference in everyday operation.

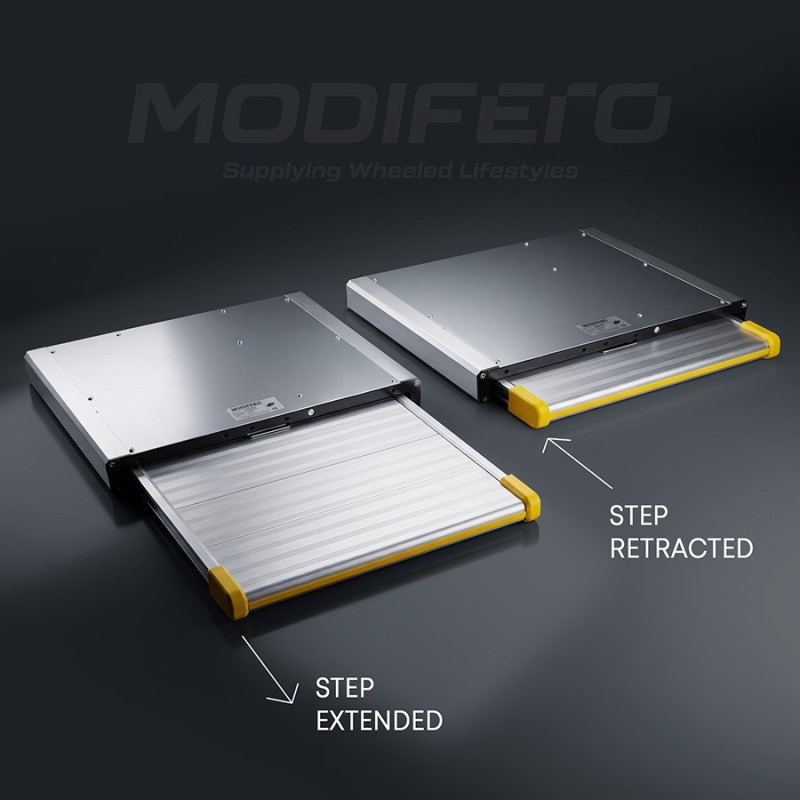

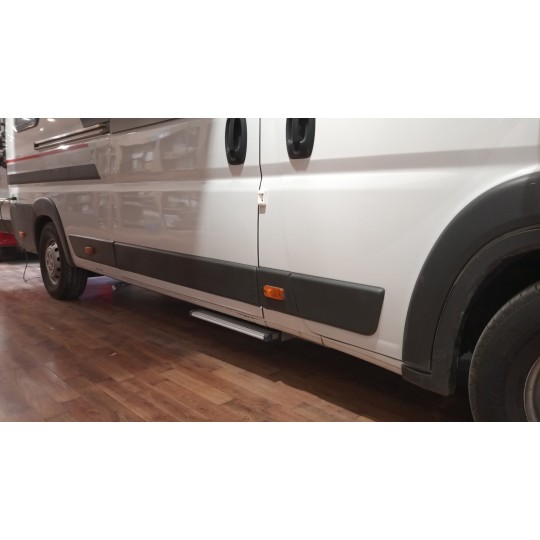

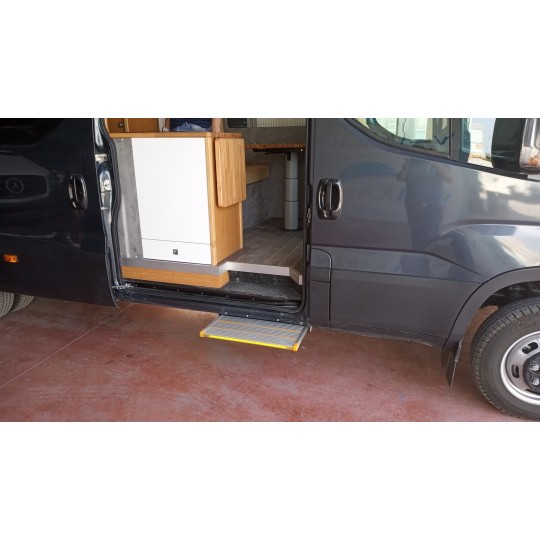

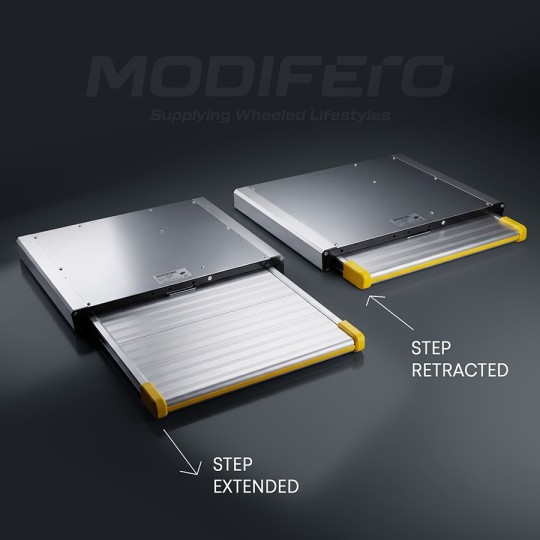

The Modifero Electric Sliding Step adds an automatically extending step below the side entrance. When the door is opened, the step extends automatically to provide an additional entry level. Once the door is closed, it retracts back into its compact position underneath the vehicle.
Depending on the vehicle and installation application, the system is available in 40 cm, 50 cm, 60 cm, 80 cm, and 100 cm widths. The required step width can be selected directly on this product page. The product price is automatically adjusted according to the selected size.
🛡️ Robust Aluminum Construction for Everyday Vehicle Use
The main structure and stepping platform are manufactured from high-quality aluminum. The corrosion-resistant construction combines low weight with durability against moisture, road dirt, road salt, and changing weather conditions – important characteristics for both premium leisure vehicles and professionally operated MAN TGE conversions.
Automatic 12V Operation Linked to the Vehicle Door
The electric step is controlled by a robust mechanical switch installed at the door frame. When the side sliding door opens, the step automatically extends; when the door closes, it retracts underneath the vehicle. Important: This model does not include an automatic obstacle detection or reverse sensor. Before opening the door, always make sure that the deployment area is clear of curbs, objects, and other obstacles.
Vehicle-Specific Access Solution for the MAN TGE
The MAN TGE is frequently chosen as a base vehicle for conversions that combine practical commercial capability with a high-quality finished interior. In campervan and motorhome projects, shuttle and VIP vehicles, and specialist professional conversions, the side entrance often becomes one of the most frequently used areas of the vehicle.
An automatically extending step integrates naturally into these vehicle concepts. It becomes available as an additional entry level as soon as the door opens and retracts underneath the vehicle when the door is closed. This provides convenient everyday access without requiring separate manual operation of the step.
B2B & Vehicle Conversion Projects: Modifero electric steps are particularly suitable for professional MAN TGE converters and specialist vehicle projects. Whether building a premium campervan, motorhome, shuttle or VIP vehicle, mobile workspace, or commercial specialist vehicle, the available step widths allow the access solution to be selected according to the specific vehicle application. The product is covered by a 2-year warranty.
Key Features of the Modifero Electric Sliding Step
- Automatic Operation: A mechanical door-frame switch synchronizes the step with the sliding door for automatic extension and retraction.
- Five Selectable Widths: Available in 40 cm, 50 cm, 60 cm, 80 cm, and 100 cm, depending on the vehicle and installation application.
- Anti-Slip Stepping Surface: The textured surface supports secure entry and exit in wet and demanding weather conditions.
- Lightweight & Robust: Aluminum construction helps minimize additional vehicle weight while providing a load capacity of up to 150 kg.
- Protected 12V Drive: The motor drive is designed for installation underneath the vehicle and regular everyday operation.
Set Contents
- Electric sliding step in the selected width
- 12V motor drive
- Rack and guide rail system
- Electronic Control Unit (ECU)
- Complete wiring harness & mechanical door switch
- MAN TGE specific mounting brackets
|
|
Warranty & Support
- 2-Year Warranty
- Corrosion-resistant aluminum construction
- Technical documentation and installation support
- Dispatch from Hungary within the EU
|
MAN TGE Electric Step – Product Overview
| Feature |
Modifero Electric Sliding Step |
| Material |
Corrosion-Resistant Aluminum |
| Automatic Operation |
Automatic Extension & Retraction Linked to the Door |
| Width Selection |
40 / 50 / 60 / 80 / 100 cm |
| Load Capacity |
Up to 150 kg |
| Warranty |
2 Years |
| EU Logistics |
Dispatch from Hungary within the EU |
Frequently Asked Questions (FAQ)
Which electric step width can I choose for my MAN TGE?
Depending on the vehicle and installation configuration, 40 cm, 50 cm, 60 cm, 80 cm, and 100 cm widths are available. Select the required size directly on the product page; the price will automatically update accordingly.
How does the automatic electric step operate?
The step is controlled by a mechanical switch installed at the door frame. It automatically extends when the sliding door opens and retracts underneath the vehicle when the door closes.
What is the maximum load capacity?
The electric step is designed for a load capacity of up to 150 kg.
Is the step suitable for MAN TGE campervan and motorhome conversions?
Yes. Campervans and motorhomes are among the typical applications. The different available widths make it possible to select a suitable version according to the specific vehicle and conversion configuration.
Does the step include obstacle detection?
No. This model uses a direct mechanical door switch and does not include an automatic obstacle sensor. Before opening the door, make sure that the deployment area is clear of curbs and other obstacles.
How long does installation take?
For a first installation, an experienced technician or professional vehicle converter can typically complete the installation within approximately 1 to 2 hours.
Are spare parts available?
Spare parts and technical support for Modifero electric step systems are available through our European operations.
EU Supply & B2B Orders
Modifero Europe dispatches EU orders from Hungary. Shipments from Hungary to customers in other EU member states move within the EU internal market and therefore do not involve import customs clearance or import duties at the destination.
For eligible intra-Community B2B transactions, VAT treatment may be applied according to the customer's VAT status and the applicable EU VAT rules. Customers should provide a valid EU VAT number where relevant.
Installation Guides & Technical Documentation
Access technical wiring diagrams, mounting schematics, and installation instructions for the MAN TGE Electric Sliding Step.
Legal Disclaimer: Modifero Europe is an independent manufacturer of aftermarket vehicle solutions. Brand and model names (e.g. MAN TGE) are used solely to identify vehicle compatibility. Our products are not manufactured, supplied or endorsed by the respective vehicle manufacturers.
